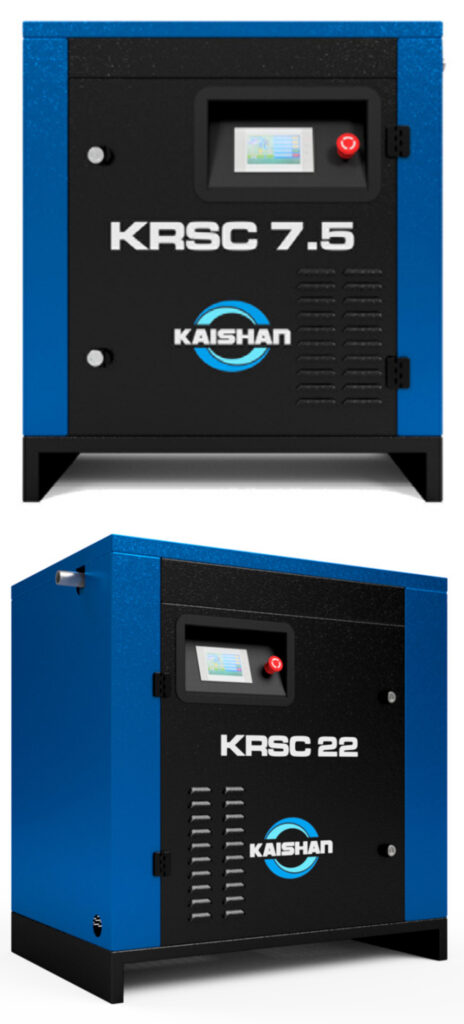

KRSC Range
Top performance and reliability in a
small package
Precision engineered for efficiency, reliability and long lasting performance
Kaishan Air End
- Advanced SKF bearing arrangement
- Minimal inlet pressure drop
- Directly driven
Directly Driven Air End
- No belts to adjust or replace
- Lower maintenance cost
- No power loss from belt slippage
Permanent Magnet Motor
- Energy efficient over a wide range of speed
- IE4 premium efficiency
- Variable speed to meet operating demands
Advanced Digital Controller
- Constant monitoring of all vital functions
- Service schedule notification
- Advanced touch control display
Package Benefits
- Full control of air output to match demand
- Reduced part load energy usage
- Low maintenance time and associated costs
Engineered for efficiency and reliability, our 4–22 kW direct-drive compressors deliver consistent 6–10 bar air output with precision and durability for European industries.
TECHNICAL DATA SPECIFICATION
| Model | Power kW |
Operating pressure (bar) |
Volume flow m³/min | Sound dBA |
Weight kg |
Dimension mm |
|
|---|---|---|---|---|---|---|---|
| 8 | 10 | ||||||
| KRSC-4 | 4 | 6 - 10 | 0.56 | 0.39 | 72 | 120 | 1610×550×1295 |
| KRSC-5 | 5.5 | 6 - 10 | 0.76 | 0.62 | 72 | 120 | 600×450×780 |
| KRSC-7 | 7.5 | 6 - 10 | 1.08 | 0.95 | 72 | 125 | 740×490×825 |
| KRSC-11 | 11 | 6 - 10 | 1.53 | 1.30 | 70 | 150 | 820×640×935 |
| KRSC-15 | 15 | 6 - 10 | 2.25 | 1.93 | 72 | 160 | 820×640×935 |
| KRSC-18 | 18.5 | 6 - 10 | 3.02 | 2.49 | 72 | 240 | 980×700×1025 |
| KRSC-22 | 22 | 6 - 10 | 3.45 | 2.95 | 72 | 240 | 980×700×1025 |
Performance data according to ISO 1217, Annex E. Technical specifications are subject to change without prior notice. Errors excepted.
SIZE AND SCALE
+
